1080p Wireless HDMI Extender 100m with local loop out, IR, HDCP1.2 – Transmitter & Receiver

1080p Wireless HDMI Extender 100m with local loop out, IR, HDCP1.2 – Transmitter & Receiver

SKU SA-HE237W Categories ,

Description

  • HDMI video and audio transmission via wireless WIFI, up to 200 meters.
  • HD video signal resolution up to 1920 * 1080 @ 60 Hz.
  • HDMI 1.3 compatible.
  • Special format H.264 is used to compress and decompress video, effectively improve the transfer efficiency, to ensure that the playback fluency.
  • In accordance with standard 1.2 HDCP, high-bandwidth digital content protection technology.
  • Supports external remote infrared extension, easy to operate the remote device.
  • Transmitter support one channel LOOP OUT.
  • Able to automatically identify and configure a variety of display mode.
  • Built-in automatic balance system, the picture is fluent, clear and stable.
  • Simple and convenient installation, plug and play, do not need to set up.



Packing List:

  • 1 x HDMI Transmitter
  • 1 x HDMI Receiver
  • 1 x Mini USB Cable
  • 1 x User Manual
  • 2 x DC 5V Power Adapter

Specification

Video Standard HDMI 1.3, HDCP 1.2
Compressed Format H.264
Maximum Pixel Clock 165 MHz
Maximum Data Rate 6.75 Gbps
Resolution 1920 x 1080P @ 60Hz
Connector HDMI-A
Impedance 100 Ohm
HDMI Input Output Range Less than 5 meters,

When 1920 x 1080p @ 60Hz

Interface 3.5mm Stereo Audio socket
Signal Direction Unidirectional
Signal Type Digital
IR Frequency 20 – 60 kHz
Radio Frequency 24 dbm (Power)
Wireless Standards 802.11 a/n
Signal Direction Unidirectional
Radio Frequency 5.15 – 5.825 GHz
Transmission Distance Undisturbed Environment 200M
Power Adapter: DC 5V
Power Dissipation MAX 10W
Operating Temperature – 5°C ~ +70°C
Operating Humidity 5% ~ 90%
Dimensions – mm 116 x 108 x 20
Warranty 1 Year free warranty

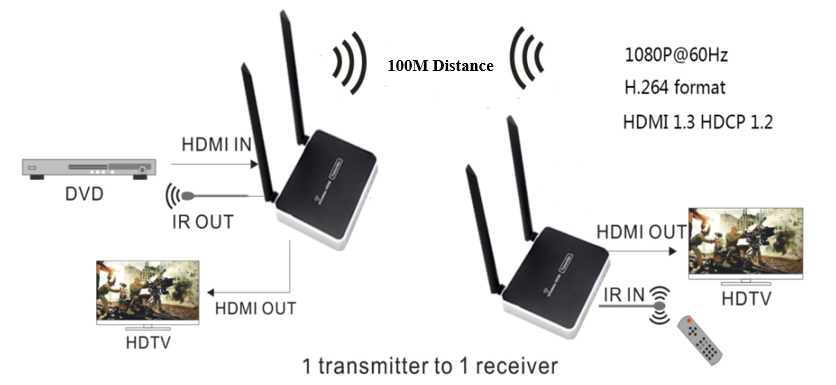

Diagram

Download

SA-HE237WT Datasheet (EN)_v2024.pdf 203 KB
