Description

• Support DP 1.2 4K30, 1920 x 1200 @ 60Hz resolution with Low Latency Time.

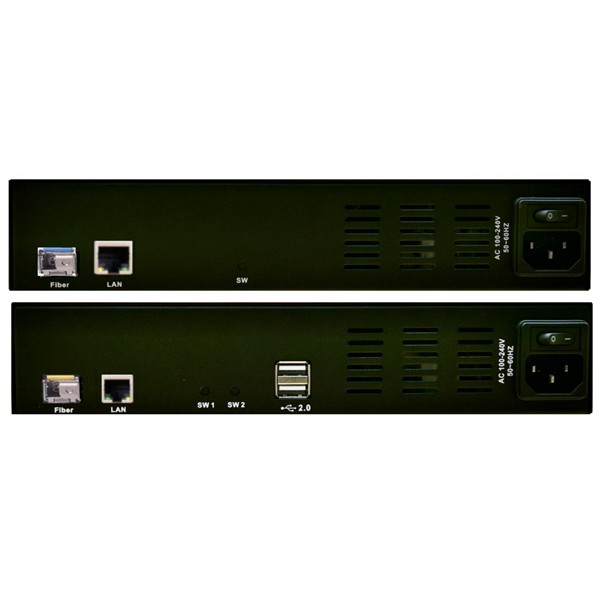

• Support IP based Gigabit Ethernet Switch for physical layer transmission, built in both RJ45 and SFP connection.

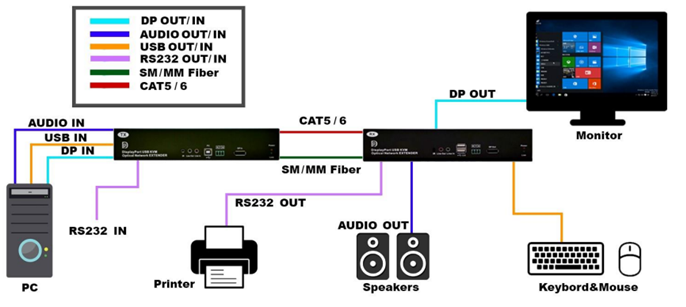

• Only one CAT 6 or Fiber Cable Required for DP 1.2 and 3.5mm Audio + USB + RS232.
• Support 4 x USB 2.0 ports for keyboard, mouse, touch, storage.
• Support bi-directional 3.5mm audio, speaker and microphone at Receiver site.
• Support Auto EDID from Rx screen.
• Pure hardware design, plug-and-play, no additional software installation is required.

Packing List:

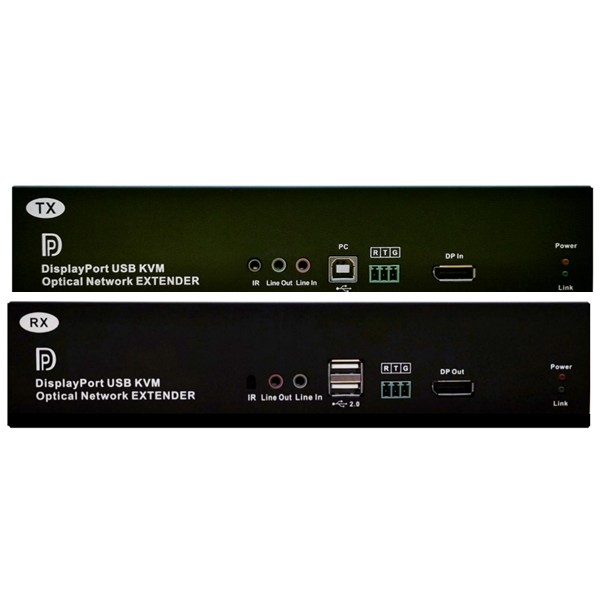

• 1 x DP KVM over IP Extender (TX)
• 1 x DP KVM over IP Extender (RX)
• 1 x USB Cable (Type-A to Type-B, 1.8m)
• 2 x 12V / 2A Power Adapter
