Description

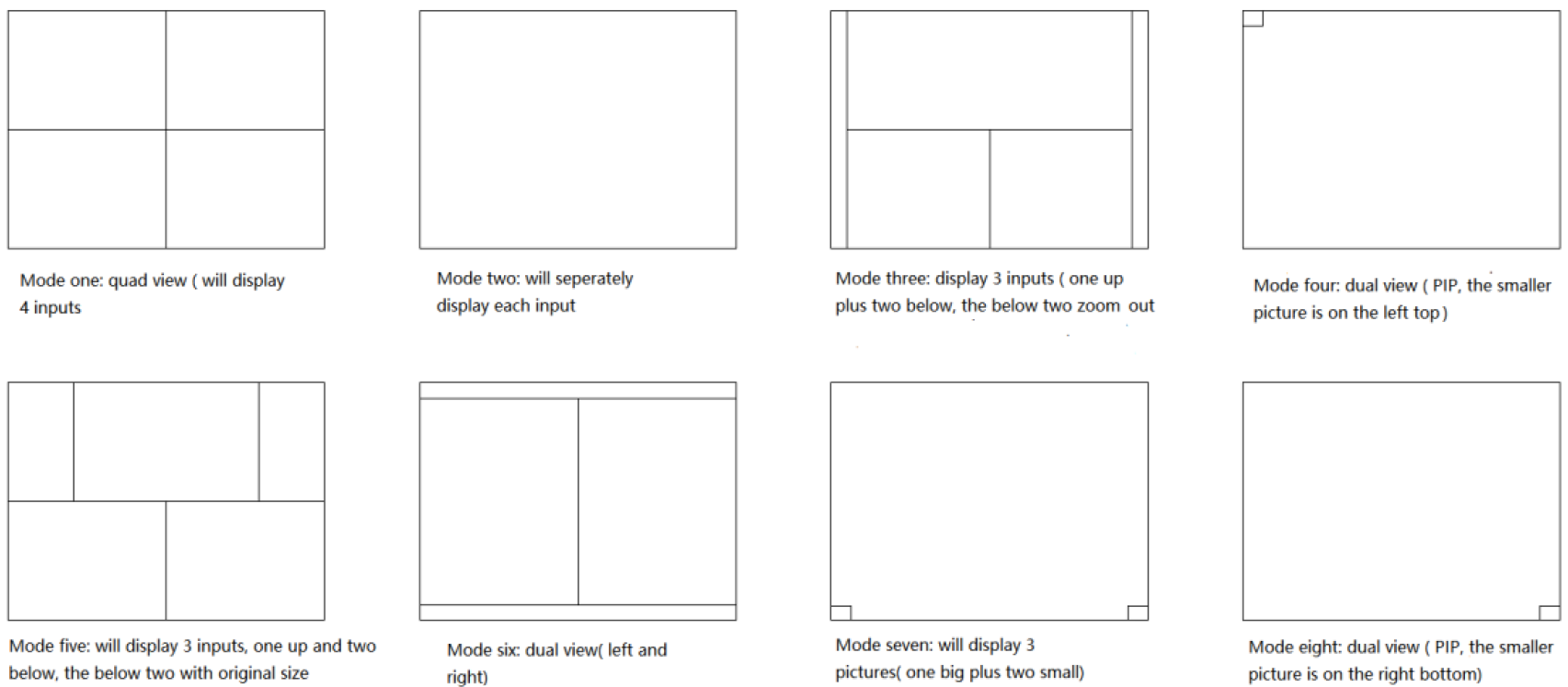

- Supports multiple working modes.
- Support up to 4K inputs and 4K 60 outputs.
- Supports front panel push–button, IR and RS232 control.
- Supports the audio switching.
- Supports the 3.5mm audio de-embedded.

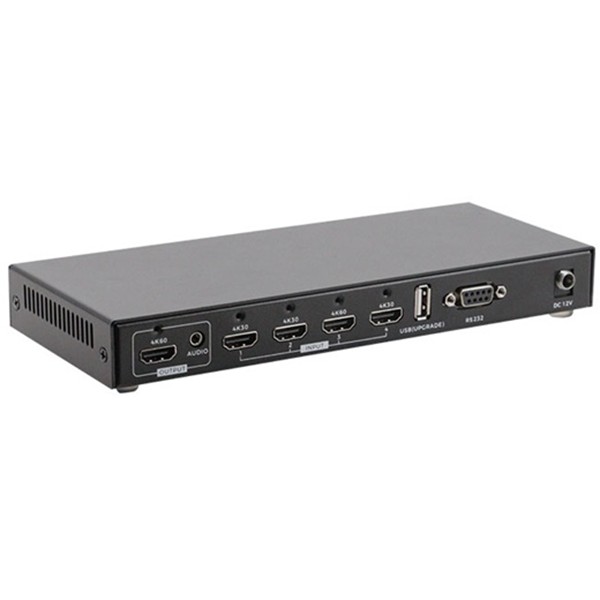

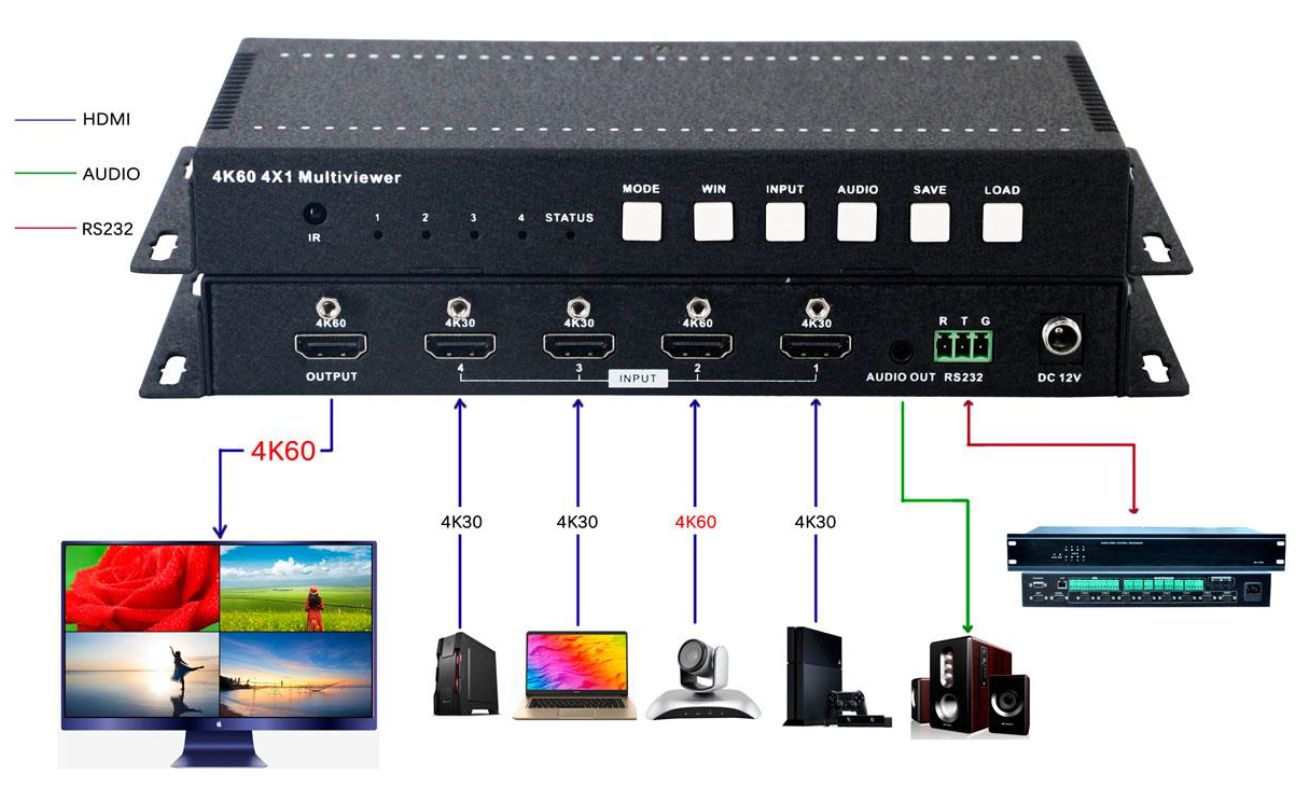

| Input | 1 x HDMI 2.0 (4K 60)
1 x HDMI 1.4 (4K 30) |
| Input Resolution | HDMI2.0:
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1200, 720 x 480 (480P), 720 x 576 (576P), 1280 x 720 (720P 30), 1280 x 720 (720P 50), 1280 x 720 (720P 60), 1920 x 1080 (1080P 24), 1920 x 1080 (1080P 25), 1920 x 1080 (1080P 30), 1920 x 1080 (1080P 50), 1920 x 1080 (1080P 60), 3840 x 2160 (2160P 30), 3840 x 2160 (2160P 50), 3840 x 2160 (2160P 60) HDMI1.4: 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1200, 720 x 480 (480P), 720 x 576 (576P), 1280 x 720 (720P 30), 1280 x 720 (720P 50), 1280 x 720 (720P 60), 1920 x 1080 (1080P 24), 1920 x 1080 (1080P 25), 1920 x 1080 (1080P 30), 1920 x 1080 (1080P 50), 1920 x 1080 (1080P 60), 3840 x 2160 (2160P 30) |
| Output | 1 x HDMI 2.0 |
| Output Resolution | HDMI2.0:
1920 x 1080 (1080P 50), 1920 x 1080 (1080P 60), 3840 x 2160 (2160P 30), 3840 x 2160 (2160P 50), 3840x 2160 (2160P 60) |
| Audio Input | 4 x HDMI |
| Net Weight | 0.8 Kg |
| Audio Input Signal | RAW PCM, 16–bit, 32 / 44.1 / 48 kHz sps; PCM 2.0 |
| Audio Output | 1 x HDMI 2.0
1 x Analogue Audio |
| Audio Output Signal | RAW PCM, 16–bit, 32 / 44.1 / 48 kHz sps; PCM 2.0 |

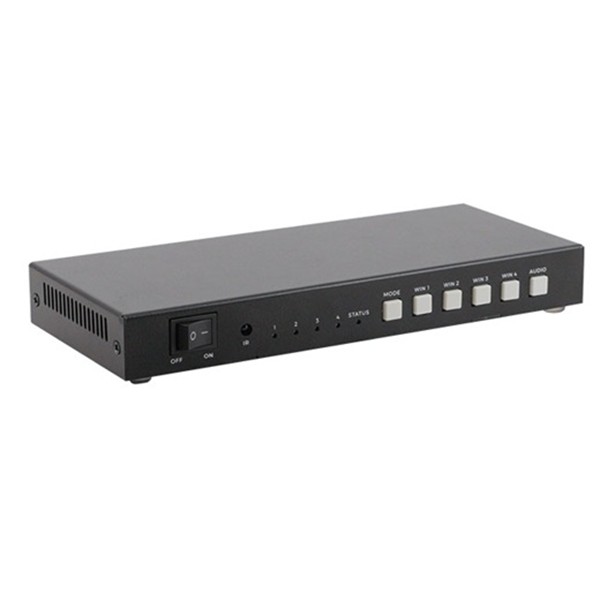

| Control Method (Front Panel Button) | MODE: Select display mode
WIN1: Switch / select the inputs for Window 1 WIN2: Switch / select the inputs for Window 2 WIN3: Switch / select the inputs for Window 3 WIN4: Switch / select the inputs for Window 4 AUDIO: Select the corresponding input signal (*Long press for 7 seconds to reset to factory model) |
| Control Method (IR) | Can realize all the functions of the button, also support fast switching |
| Control Method (RS232) | The interface is a 3–pin phoenix segment, which support third–party control |
| Operating Temperature | 0℃ to + 45℃ ( 32℉ to + 113℉) |
| Storage Temperature | – 20℃ to + 70℃ ( – 4℉ to + 158℉) |
| Relative Humidity | 10% to 90% |
| Static Protection | ±8kV (Air–gap discharge)
±4kV (Contact discharge) |
| Power Supply | 12V 1.5A DC |
| Power Consumption | 10W (Max) |
| Measure | 223 mm x 27 mm x 97 mm |
