4K Dual Head HDMI USB Extender over Fiber Optic, with Audio

4K Dual Head HDMI USB Extender over Fiber Optic, with Audio

SKU SC-AVH2F12 Categories KVM, KVM EXTENDER

Description

Support Single PC with Dual HDMI, 3.5mm Audio, USB.
Support dual HDMI 4K @ 30Hz, or 1920 x 1200 @ 60Hz resolution.
Using standard LC / SC, SM / MM SFP Optic module (1.25 Gpbs).
Support Web GUI for the configuration.
Support OSD Menu for Transmitter connection, Push Video-Wall.
Support Matrix Connection, Video-Wall Management Software.
Support Virtual USB HUB in Exclusive or Sharing mode.
Support USB 2.0 extension for keyboard, mouse, touch, storage.
Support both HDMI and 3.5mm stereo audio and microphone.
Pure hardware design, plug-and-play, no any software installation is required.
FCC, CE, RoHS.

Specification

HDMI Input	Transmitter: 2 Receiver: NA
HDMI Output	Transmitter: 2 (local loop-out) Receiver: 2
USB Connections	Transmitter: 1 x USB Type-B to PC Receiver: 4 x USB Type-A
Audio Connections	Transmitter: 1 x Line-In, 1 x Line-Out Receiver: 1 x MIC-In, 1 x Line-Out
Power	DC 12V 5A
System Port	2 x LC or SC, SM or MM, SFP Module
Resolution	DVI: 1080p / 1920 x 1200 @ 60Hz HDMI: 4K2K (3840 x 2160 @ 30Hz)
Inter-Connect Cable	Single Mode (3KM) Multi Mode (550m) Optic Fiber
Operation Temperature	0°C ~ 70°C
Storage Temperature	– 20°C ~ 85°C
Humidity	0 ~ 80% Non-condensing
Weight	1100 g (Transmitter & Receiver)
Dimensions (mm)	170 x 150 x 50 (Transmitter & Receiver)

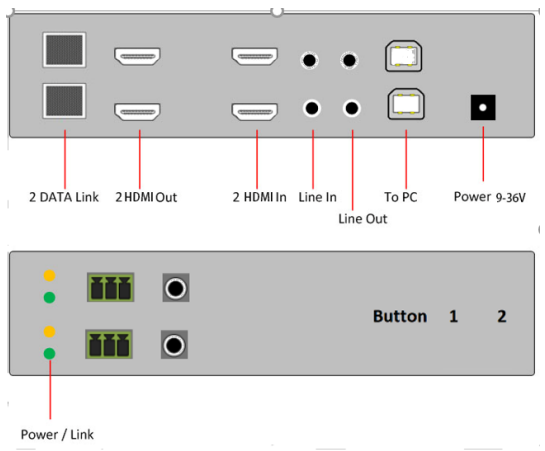

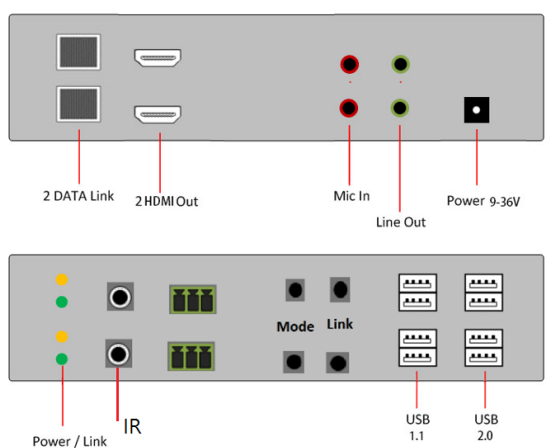

Diagram

Download

SC-AVH2F12 Datasheet (EN)_v2024.pdf 166 KB
