Description

• Using H.264 compression encoding, support resolution up to 1080P @ 60Hz.
• Transmit up to 120m over single CAT5E/6 cable, with 1 x looping HDMI output.
• With IR Remote to choose the source, with LED to show the Group ID.
• Comply with TCP / IP protocol, streaming bit rate is up to 15 Mbps.
• Support LPCM audio format.
• Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP).
• Bypass 2 way UART / RS232 (Up to 115200), use remote controller to select 8 group Baud rate.

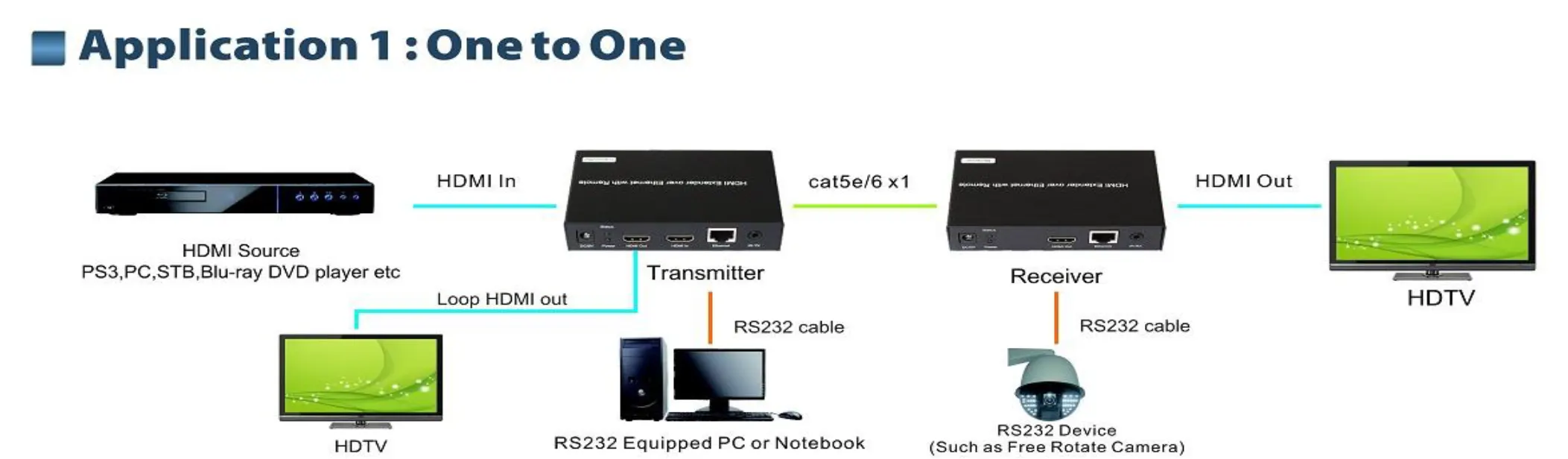

• Support one to one, one to many, many to one, many to many modes, with large cascade.
• Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POE switch).
• HDCP Compliant.
• Support PC tool control.
• DC 5V 1A power supply.

Packing List:

• 1 x Transmitter
• 1 x Receiver
• 1 x IR – TX Cable
• 1 x IR – RX Cable
• 1 x User Manual
• 2 x IR EXT Cable
• 2 x Phoenix Plugs for RS232 Cable Termination
• 2 x Remote Controller
• 2 x 5V / 1A Power Adapter
• 4 x Detachable Mounting Ears
• 8 x Screws
