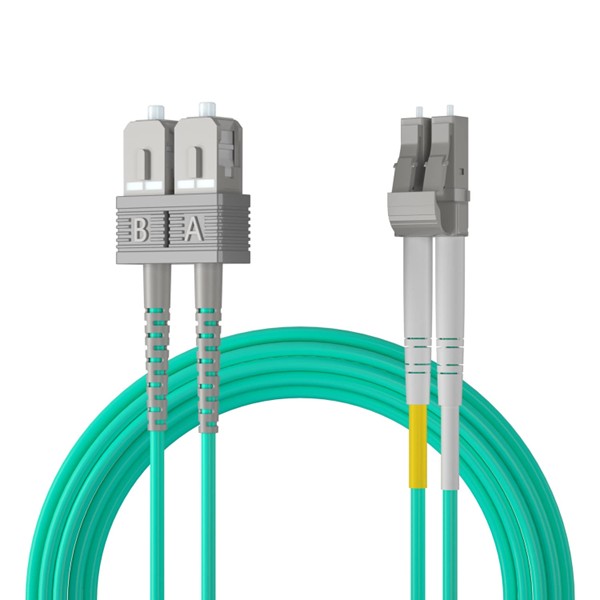

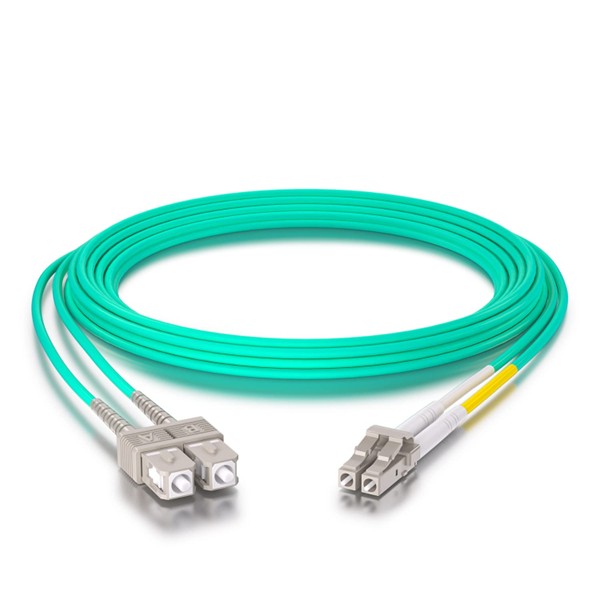

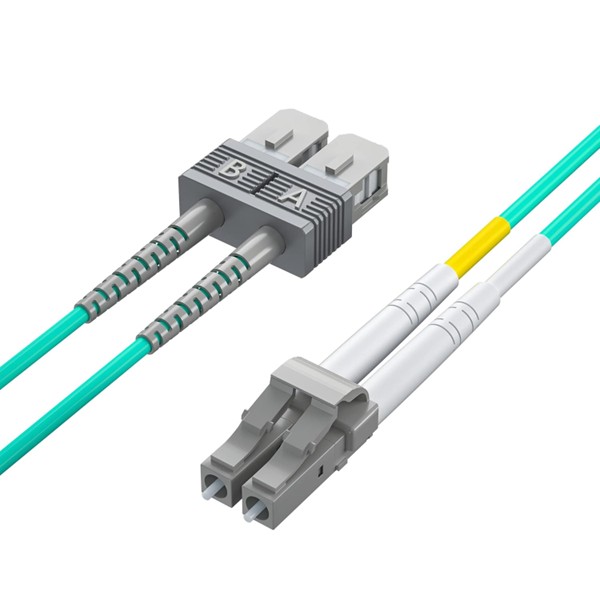

SC-LC Fiber Optic Cable Multimode, Duplex, 50/125 OM3

SC-LC Fiber Optic Cable Multimode, Duplex, 50/125 OM3

SKU TM-SCLCMM53DXxxxZ Categories ,

Description

  • CATV.
  • Telecommunication networks.
  • Active device termination.
  • Metro.
  • Local Area Networks (LANs).
  • Data processing networks.
  • Test equipment.
  • Premise installations.
  • Wide Area Networks (WANs).



Packing List: 1 x Fiber Optic Cable (SC-LC)

Specification

Multi-Mode OM3
Jacket PVC & LSZH
OD 0.9mm, 2.0mm, 3.0mm
No. of Core Duplex – 2 core
Color Aqua
Connector SC & LC
Insertion Loss ≤ 0.3 dB
Return Loss ≥ 50 dB
Dimensions (cm) 50 x 42 x 34
Available Length 2m, 3m, 35m
Operating Temperature – 40°C to + 85°C
Storage Temperature – 50°C to + 85°C
3D Test Passed
Durability ≥ 1000 times

Length Options

SKU Description
TM-SCLCMM53DX002Z SC-LC Fiber Optic Cable Multimode, Duplex, 50/125 OM3 2m
TM-SCLCMM53DX003Z SC-LC Fiber Optic Cable Multimode, Duplex, 50/125 OM3 3m
TM-SCLCMM53DX035Z SC-LC Fiber Optic Cable Multimode, Duplex, 50/125 OM3 35m

Download

TM-SCLCMM53DXxxxZ Datasheet (EN)_v2024.pdf 115 KB
