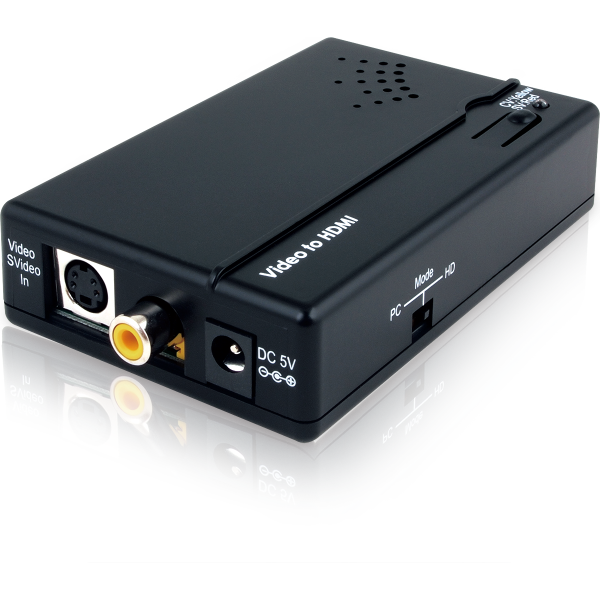

CV / SV to HDMI Scaler with 3.5mm Audio Input

CV / SV to HDMI Scaler with 3.5mm Audio Input

SKU SA-C382 Categories ,

Description

  • Operates in NTSC 3.58 and PAL & SECAM system.
  • Can scale CV / SV to HDMI format.
  • Output Resolution:
  • PC resolution: XGA, SXGA, UXGA.
  • Component resolution: 480p / 576p, 720p @ 50 or 60, 1080p @ 50 or 60.
  • 3D (frame based) motion adaptive YNR / CNR noise reduction.
  • On-Screen Display.
  • Advance 3D motion adaptive de-interlace.
  • Automatic 2:2 & 3:2 film mode detection.
  • Play video games on your HD monitor / TV.
  • High-resolution output picture.
  • Plug & Play – no drive software required.
  • Component resolution support 50 to 60 frame rate conversion only not 60 to 50.
  • PC resolution frame rate only supports 60Hz output.



Packing List:

  • 1 x CV / SV to HDMI Converter with Audio Input
  • 1 x DC 5V / 1A Power Adapter
  • 1 x Operation Manual

Specification

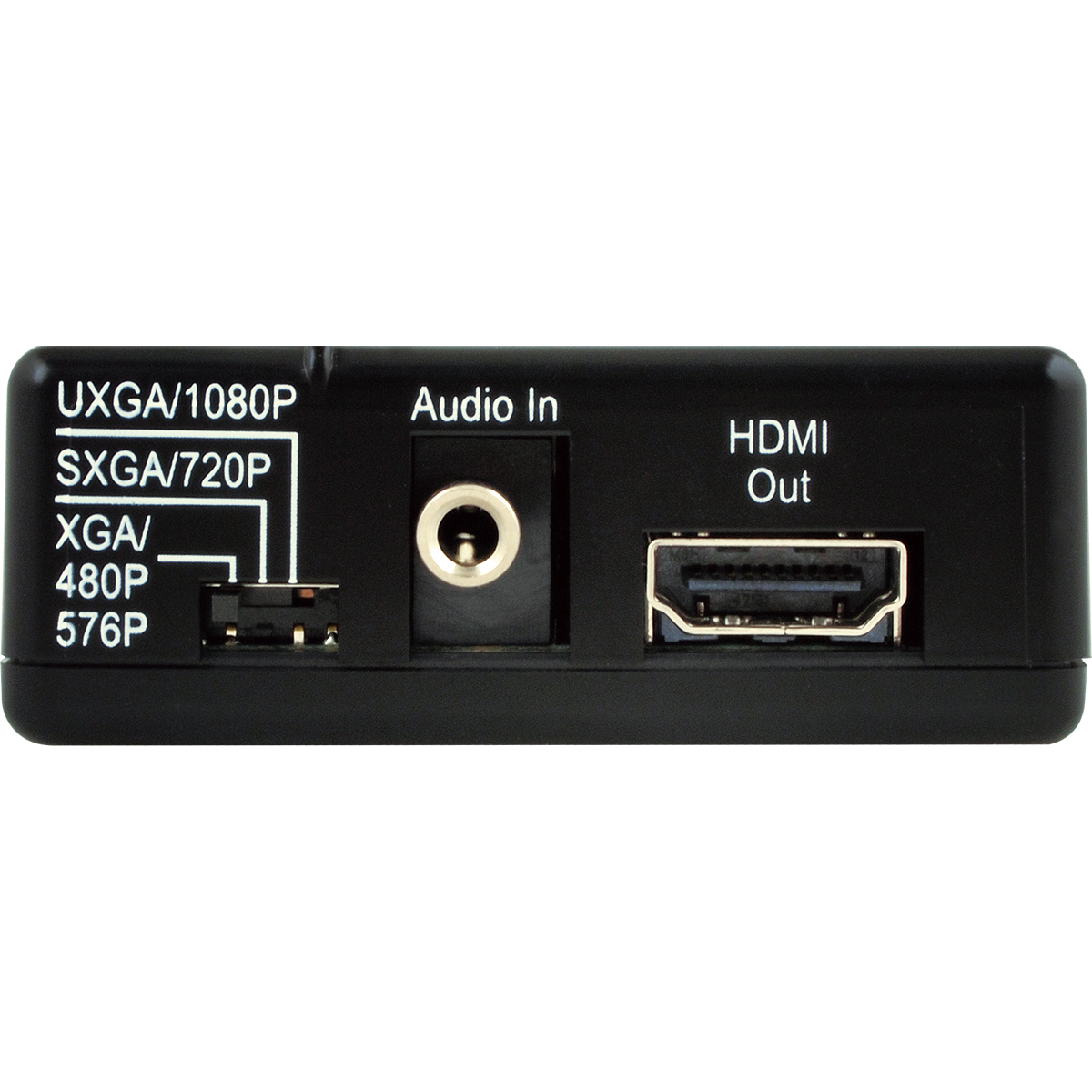

Input Port 1 x CV, 1 x SV, 1x 3.5ø Phone Jack
Output Port 1 x HDMI
Output Resolution PC: XGA / SXGA / UXGA

HD: 480P / 576P / 720P @ 50 / 60 or 1080P @ 50 / 60

Power Supply 5VDC / 1A (US/EU standard, CE/FCC/UL certified)
ESD Protection ±8kV (air-gap discharge)

±4kV (contact discharge)

Dimensions – mm

(W x D x H)

162.6 x 64.5 x 33.5
Weight 100g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature – 20°C ~ 60°C / – 4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (no condensation)
Power Consumption 2.5W
Input Level /

Frequency

2 Vrms /

1 kHz

Output Terminal HDMI
Output Sample Rate 48 kHz
Audio Impedance 54 K ohm
Frequency Level – 1.6 ± 0.5 dBFs
SNR > 80 dB
Cross-talk <- 80 dB

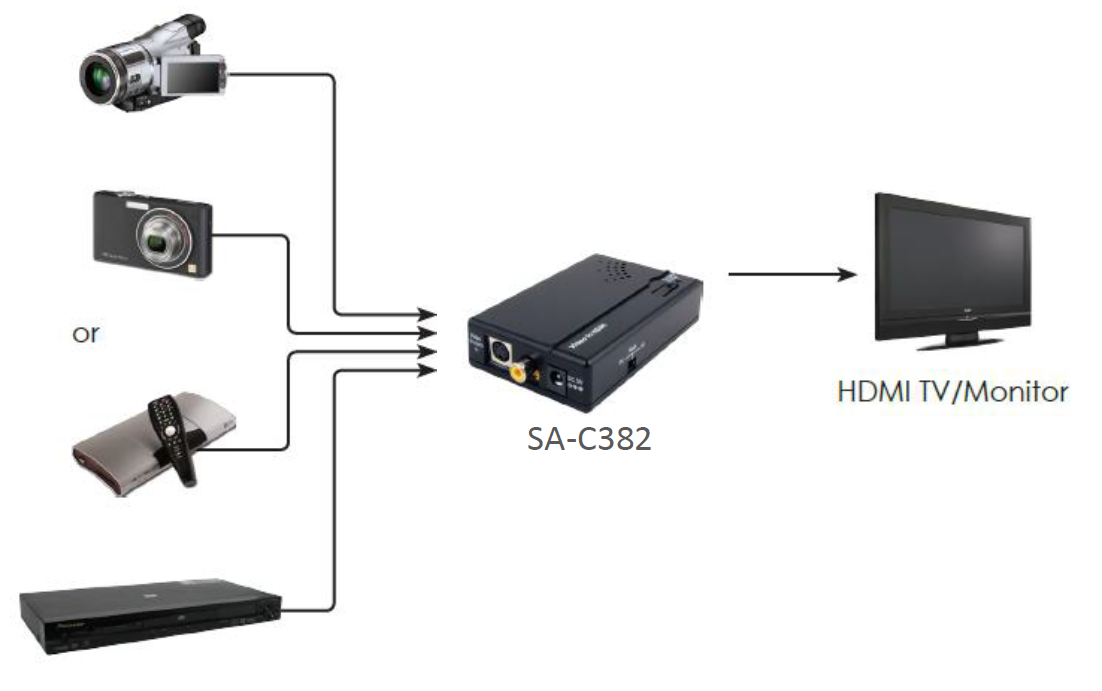

Diagram
