Description

• One pair as a full functional module, no need for setting.
• Use single UTP/STP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
• UTP/STP cable termination follows the standard of IEEE-568B.
• Transmission distance reaches up to 70 meters under the video format of 1080p and 4K up to 40 meters.
• POC (RX powered by TX)
• HDCP 2.2 / 1.4 compliant.
• Full HD support: 1080p @ 60Hz @ 48b / pixels, 3D and 4K x 2K.

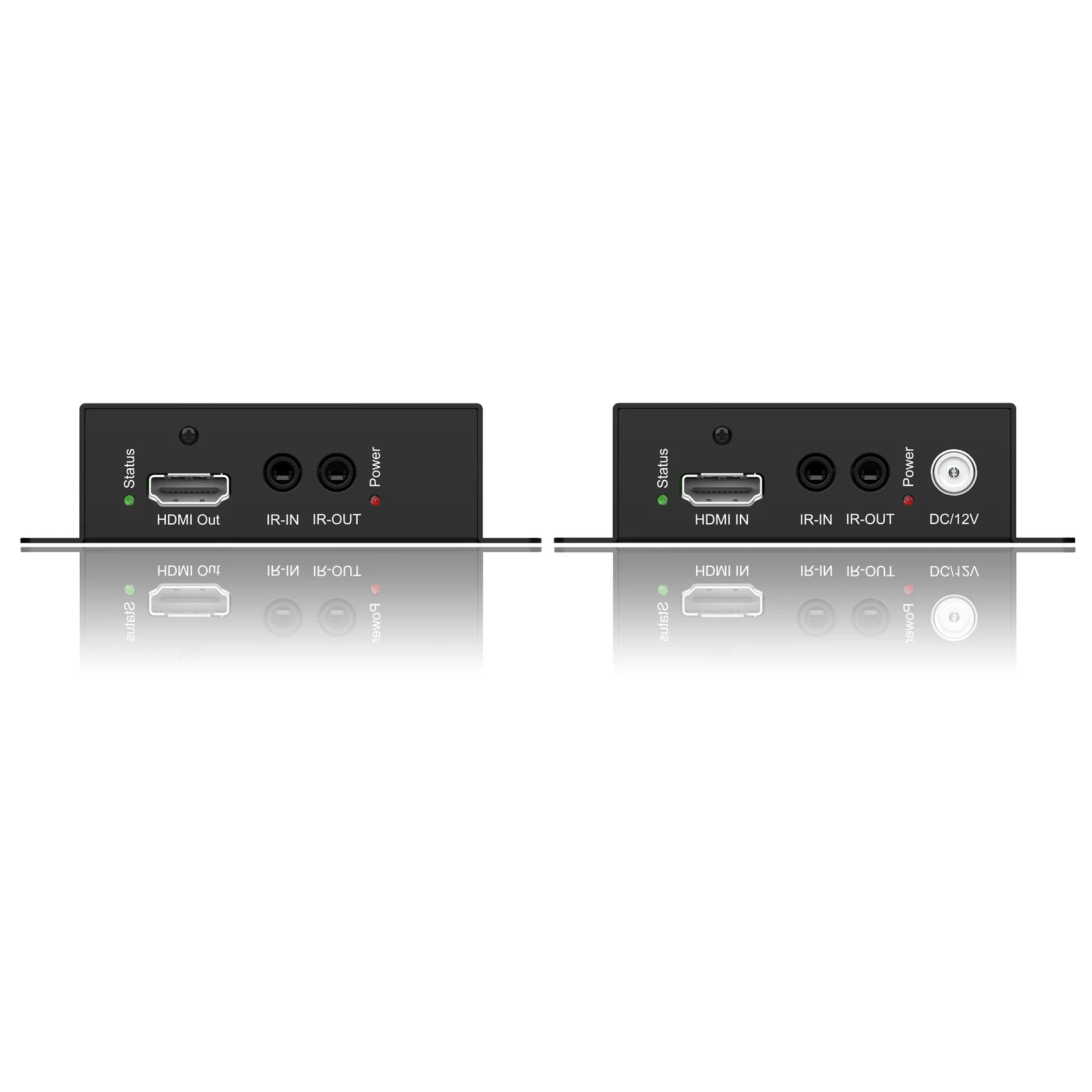

• With LED indicators to show the power status.
• With ESD protection inside.
• Mounting ears supplied.

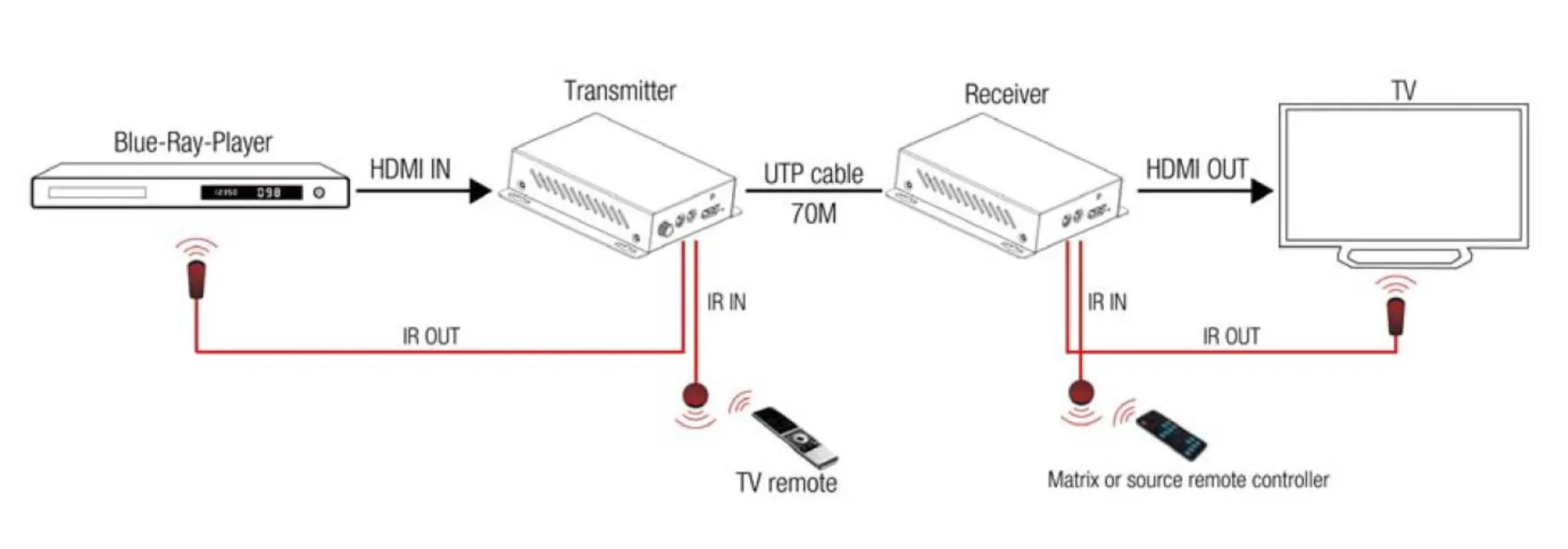

• Transfer Bi-directional Infrared control signal together with the HDMI signal.

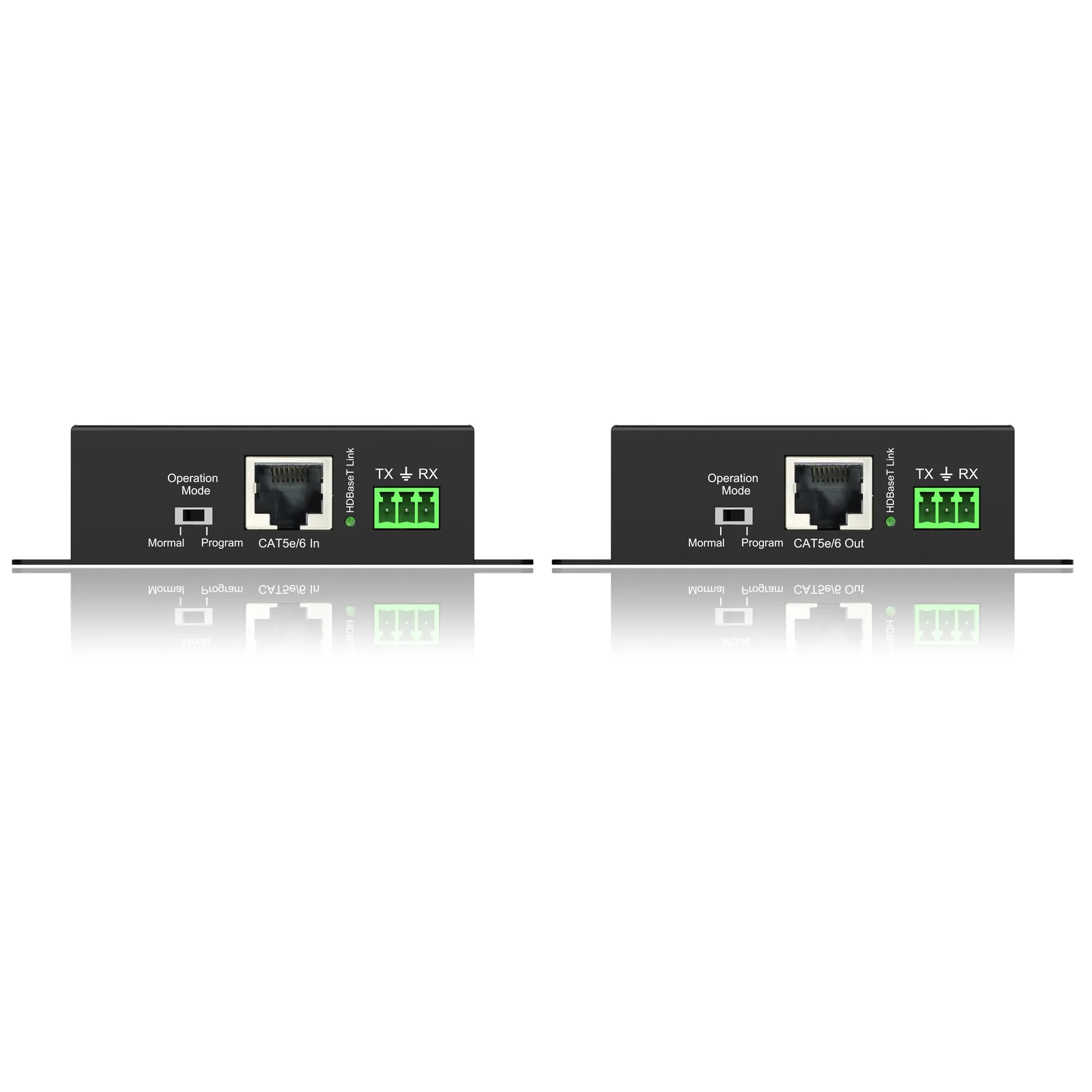

• Phoenix RS232 Port for firmware update or US232 control signal transmission.

Packing List:

• 1 x Main Unit (Transmitter)
• 1 x Main Unit (Receiver)
• 1 x DC 12V power supply (Only for TX, RX can be powered from TX)
• 1 x Operating Instructions
• 2 x IR TX unit (IR Emitter Cable, 1 pc for TX, 1 pc for RX)
• 2 x IR RX unit (IR Receiver Cable, 1 pc for TX, 1 pc for RX)
• 2 x Phoenix plugs for RS232 Cable Termination
